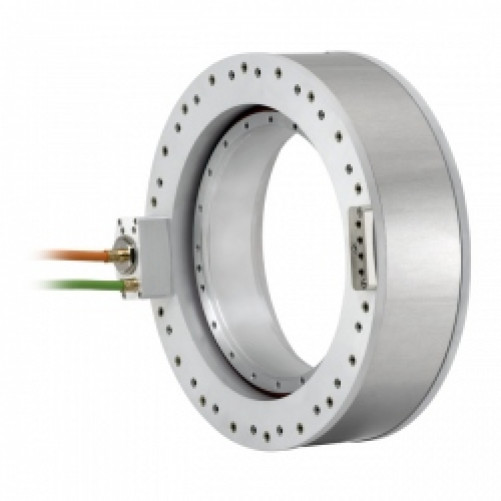

SIMOTICS T -TORQUE MOTOR- COMPONENT 3-PHASE SYNCHRONOUS MOTOR- INTERNAL PRECISION AND POWER COOLER- AXIAL CABLE OUTLET- POWER CABLE 0.5M WITH PLUG SIZE 1,5- SIGNAL CABLE 0.5M WITH PLUG SIZE M17- DIAM 440MM- LENGTH 210MM- MAX TORQUE 2150NM- MAX ROT SPEED 66RPM- MAX CURRENT 49ARMS- WHEN USING THE DIRECT MOTORS ON FORK HEADS FOR MACHINE TOOLS OR ROBOTS A -LICENSE FOR US PATENT US5584621 AND THE CORRESPONDING WORLDWIDE PATENTS MAY BE REQUIRED

роизводитель: Siemens
система: SIMOTICS T
Код 1: 1FW6160-0WB15-2JD2
Код 2: 1FW61600WB152JD2
